Table TBASE2.TBASE2.USERTYPERRD_COLRANGE Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

ID Column Type Size Nulls Auto Default Children Parents Comments
0 USERTYPERECORD_ID bigint 8
USERTYPERECORD.USERTYPERECORD_ID FK405805DDC009330E
1 COLUMNRANGE_ID bigint 8
COLUMNRANGE.COLUMNRANGE_ID FK405805DD79A523E6

Table contained 0 rows at Fri Nov 14 16:57 EST 2008

Indexes:
ID Column(s) Type Sort Constraint Name
1 COLUMNRANGE_ID Must be unique Asc SQL080501230724180

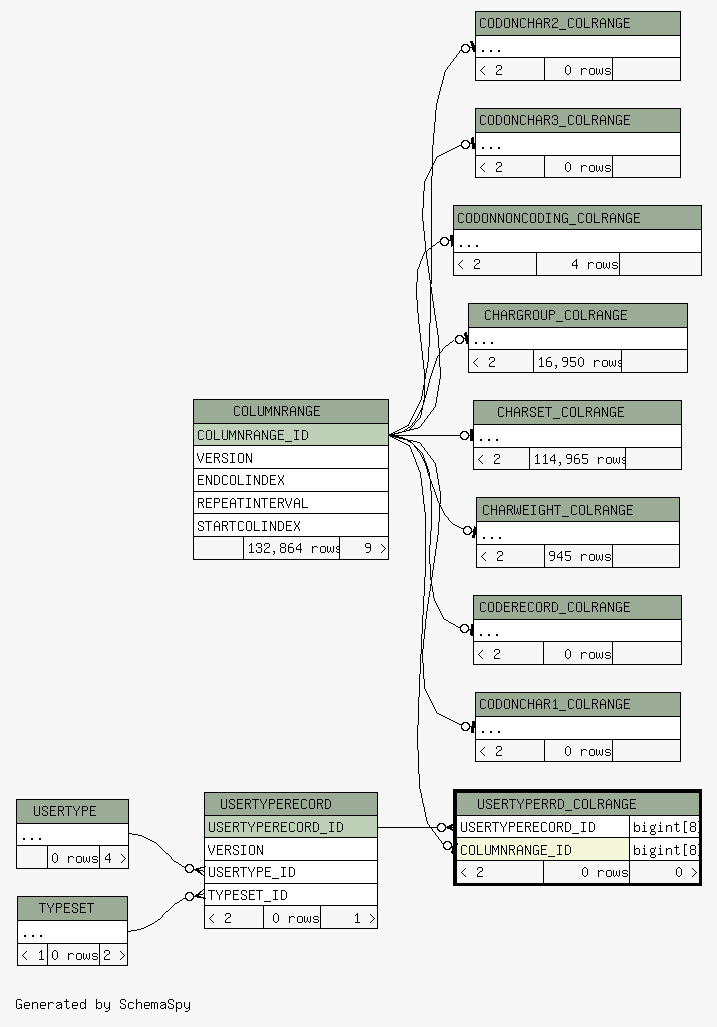

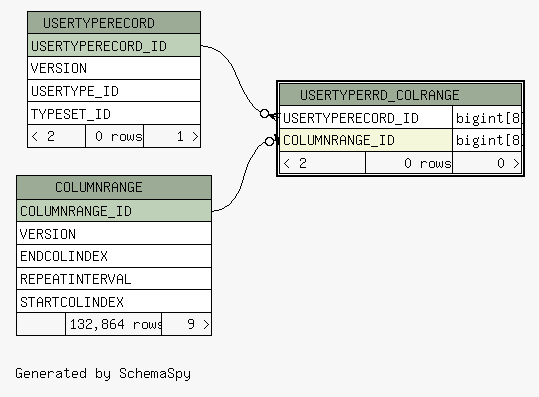

Close relationships  within of separation:
