ID Column Type Size Nulls Auto Default Children Parents Comments
0 COLUMNRANGE_ID bigint 8  √
CHARGROUP_COLRANGE.COLUMNRANGE_ID FKB2D8C29379A523E6
CHARSET_COLRANGE.COLUMNRANGE_ID FK2CBD9079A523E6
CHARWEIGHT_COLRANGE.COLUMNRANGE_ID FK54CA674E79A523E6
CODERECORD_COLRANGE.COLUMNRANGE_ID FKA3E6C61E79A523E6
CODONCHAR1_COLRANGE.COLUMNRANGE_ID FKDA5AD4F879A523E6
CODONCHAR2_COLRANGE.COLUMNRANGE_ID FKCEA4461779A523E6
CODONCHAR3_COLRANGE.COLUMNRANGE_ID FKC2EDB73679A523E6
CODONNONCODING_COLRANGE.COLUMNRANGE_ID FK307897FC79A523E6
USERTYPERRD_COLRANGE.COLUMNRANGE_ID FK405805DD79A523E6
1 VERSION integer 4  √  null
2 ENDCOLINDEX integer 4  √  null
3 REPEATINTERVAL integer 4  √  null
4 STARTCOLINDEX integer 4  √  null

Table contained 132,864 rows at Fri Nov 14 16:57 EST 2008

Indexes:
ID Column(s) Type Sort Constraint Name
1 COLUMNRANGE_ID Must be unique Asc SQL080501230722390

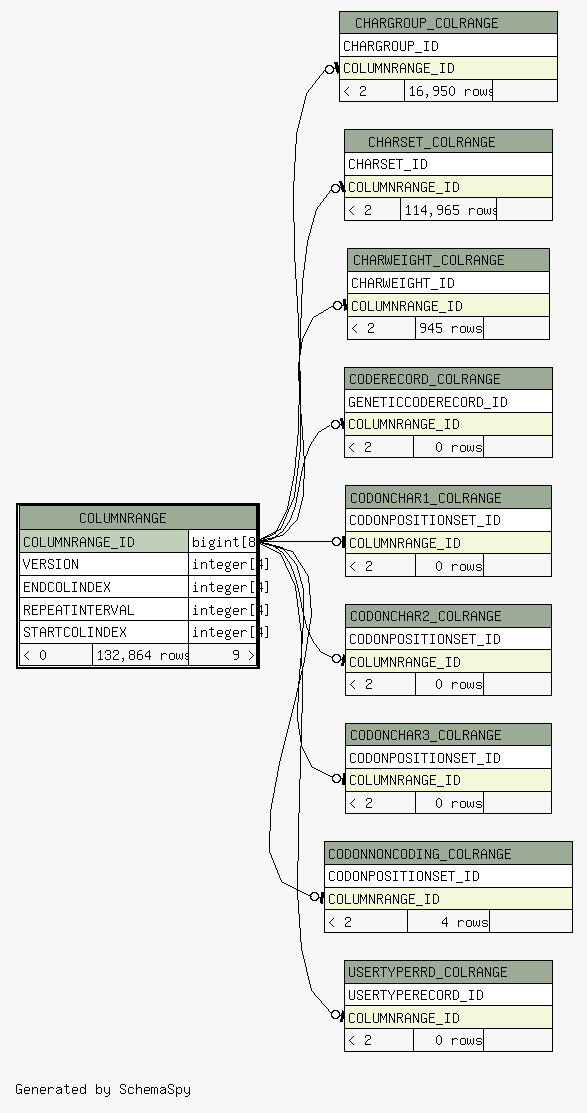

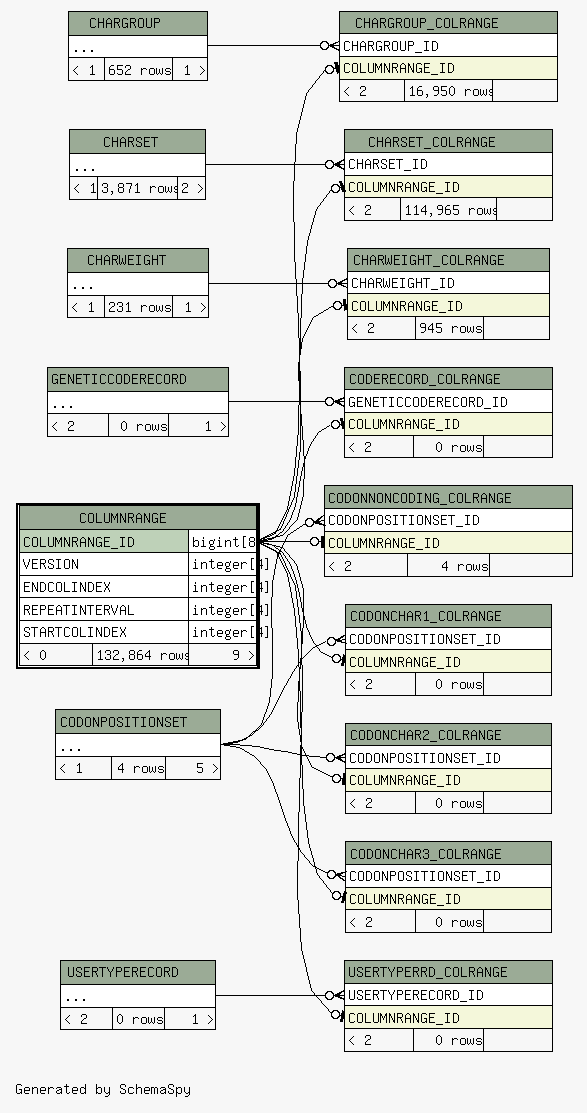

Close relationships  within of separation:
