Table TBASE2.TBASE2.CSTREENODE Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

ID Column Type Size Nulls Auto Default Children Parents Comments
0 CSTREENODE_ID bigint 8  √
CSTREENODE.PARENTNODE_ID FK82B9AB10F572A92
1 VERSION integer 4  √  null
2 DISCRETECHARSTATE_ID bigint 8  √  null
DISCRETECHARSTATE.DISCRETECHARSTATE_ID FK82B9AB10F4803CE6
3 PARENTNODE_ID bigint 8  √  null
CSTREENODE.CSTREENODE_ID FK82B9AB10F572A92
4 CSTREE_ID bigint 8
USERTYPE.USERTYPE_ID FK82B9AB10C6999FCE

Table contained 0 rows at Fri Nov 14 16:57 EST 2008

Indexes:
ID Column(s) Type Sort Constraint Name
1 CSTREENODE_ID Must be unique Asc SQL080501230722440

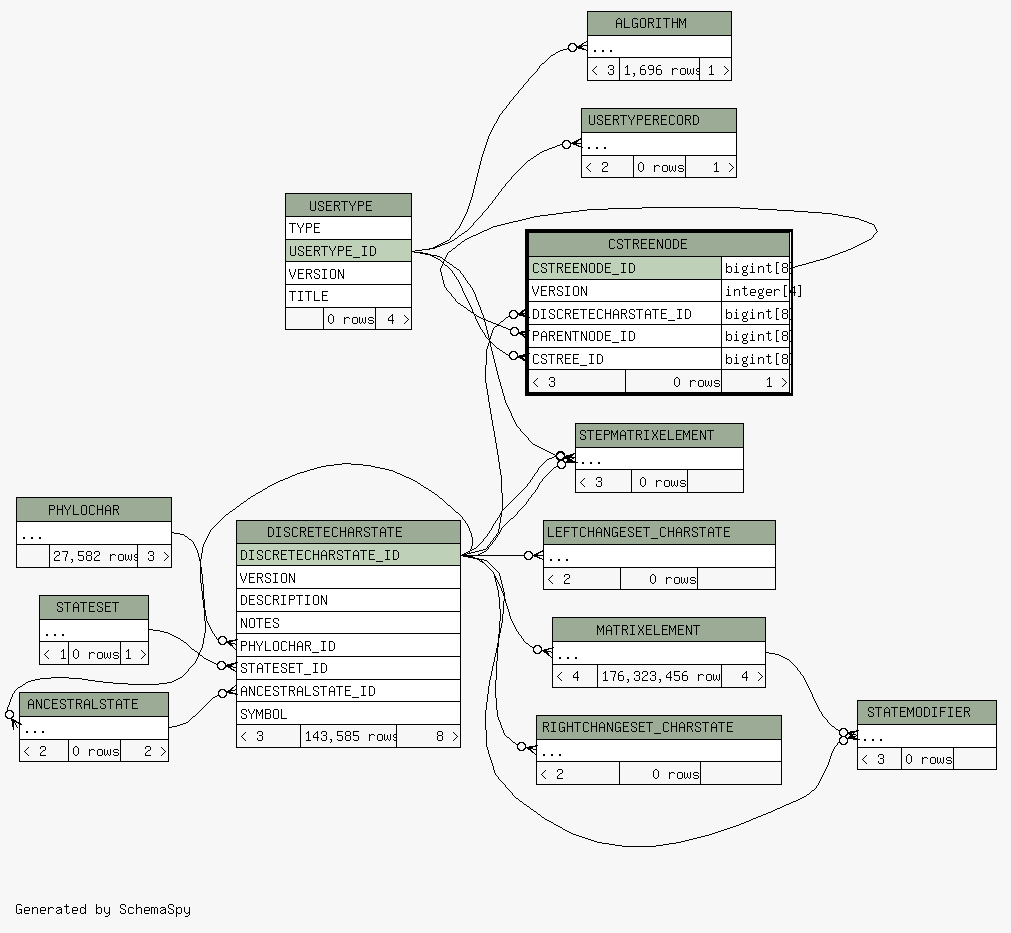

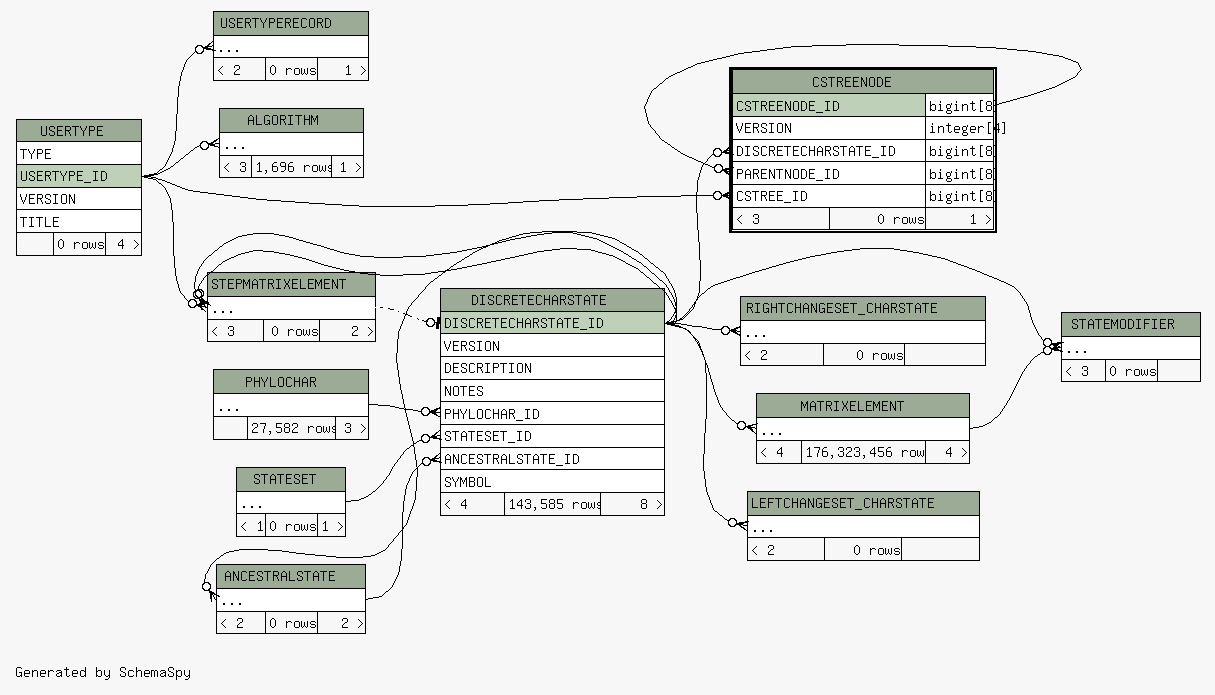

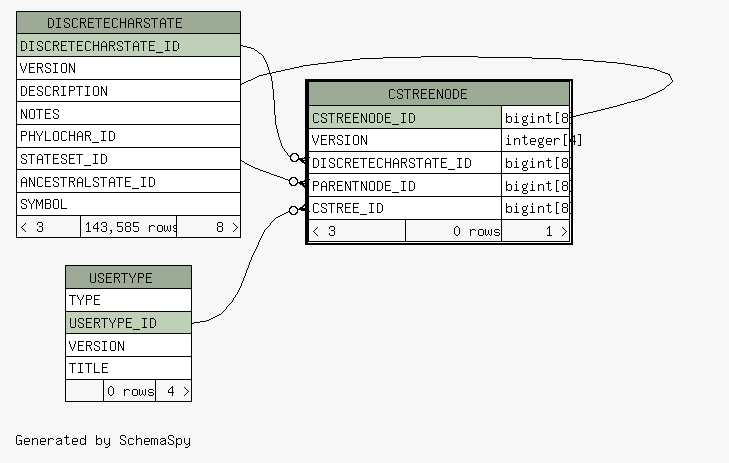

Close relationships  within of separation:
