Table TBASE2.TBASE2.STEPMATRIXELEMENT Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

ID Column Type Size Nulls Auto Default Children Parents Comments
0 DISCRETECHARSTATE_ID bigint 8  √
DISCRETECHARSTATE.DISCRETECHARSTATE_ID Implied Constraint
TEST_ELEMENT.DISCRETECHARSTATE_ID Implied Constraint
1 VERSION integer 4  √  null
2 TRANSCOST double 8  √  null
3 STATE1_ID bigint 8  √  null
DISCRETECHARSTATE.DISCRETECHARSTATE_ID FK891100AF6E972A88
4 STATE2_ID bigint 8  √  null
DISCRETECHARSTATE.DISCRETECHARSTATE_ID FK891100AF6E979EE7
5 STEPMATRIX_ID bigint 8
USERTYPE.USERTYPE_ID FK891100AF9E8198E

Table contained 0 rows at Fri Nov 14 16:57 EST 2008

Indexes:
ID Column(s) Type Sort Constraint Name
1 DISCRETECHARSTATE_ID Must be unique Asc SQL080501230723280

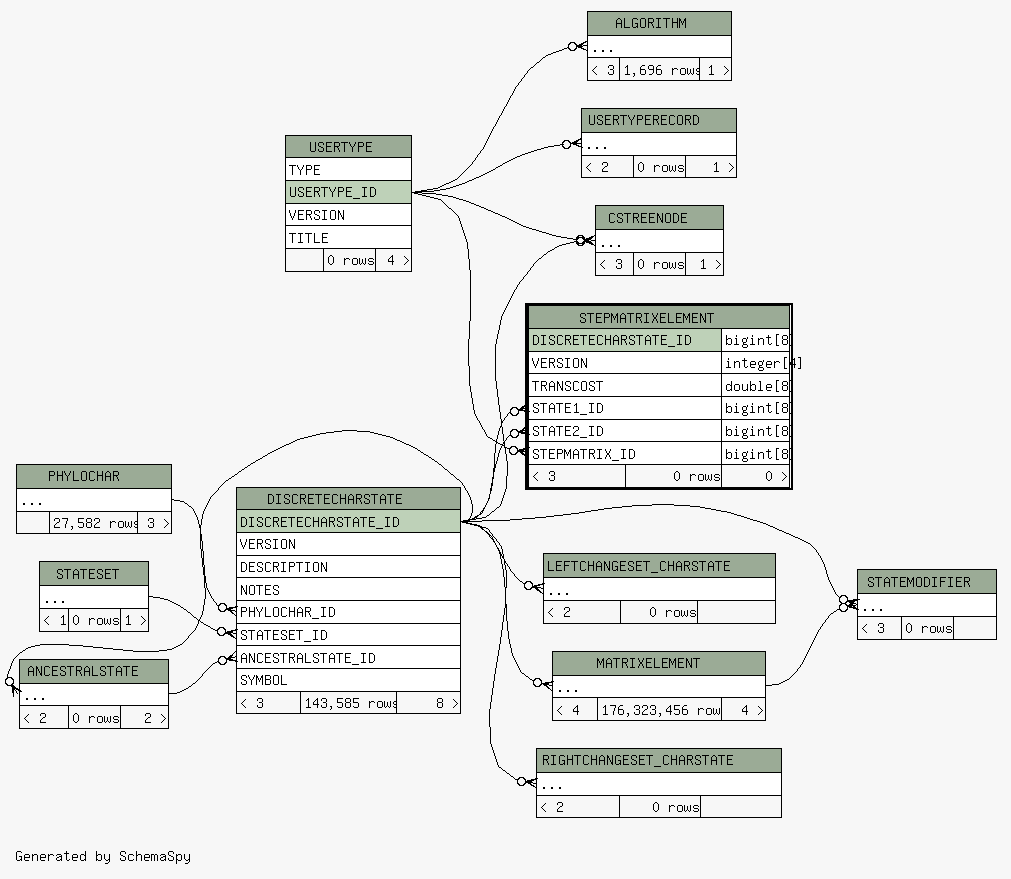

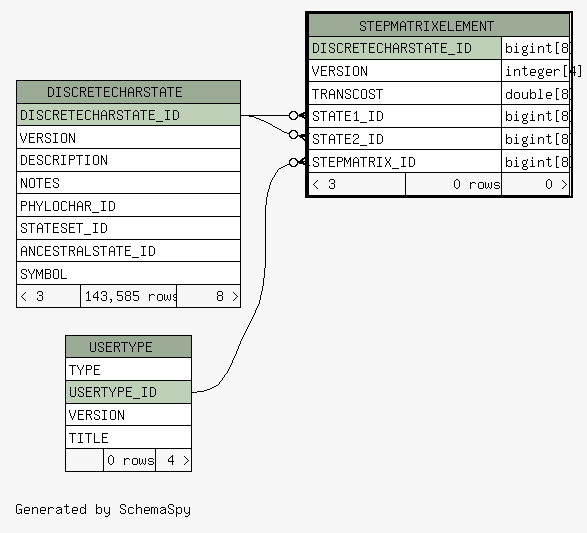

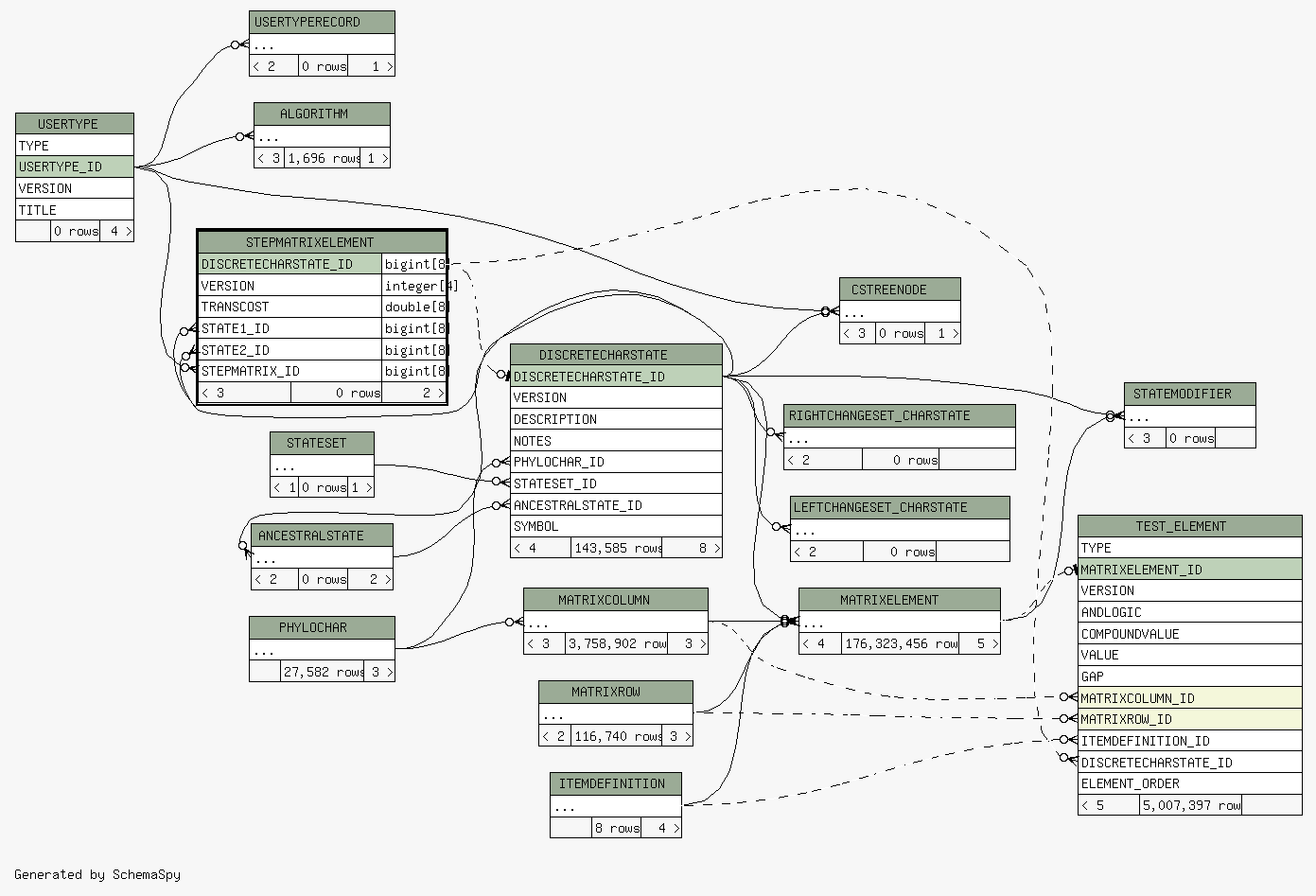

Close relationships  within of separation:
