Table TBASE2.TBASE2.STATESET Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

ID Column Type Size Nulls Auto Default Children Parents Comments
0 STATESET_ID bigint 8  √
DISCRETECHARSTATE.STATESET_ID FK2EEF2802163C67CE
1 VERSION integer 4  √  null
2 TITLE varchar 255  √  null
3 MATRIX_ID bigint 8  √  null
MATRIX.MATRIX_ID FK7D38523150CBAB47

Table contained 0 rows at Fri Nov 14 16:57 EST 2008

Indexes:
ID Column(s) Type Sort Constraint Name
1 STATESET_ID Must be unique Asc SQL080501230723260

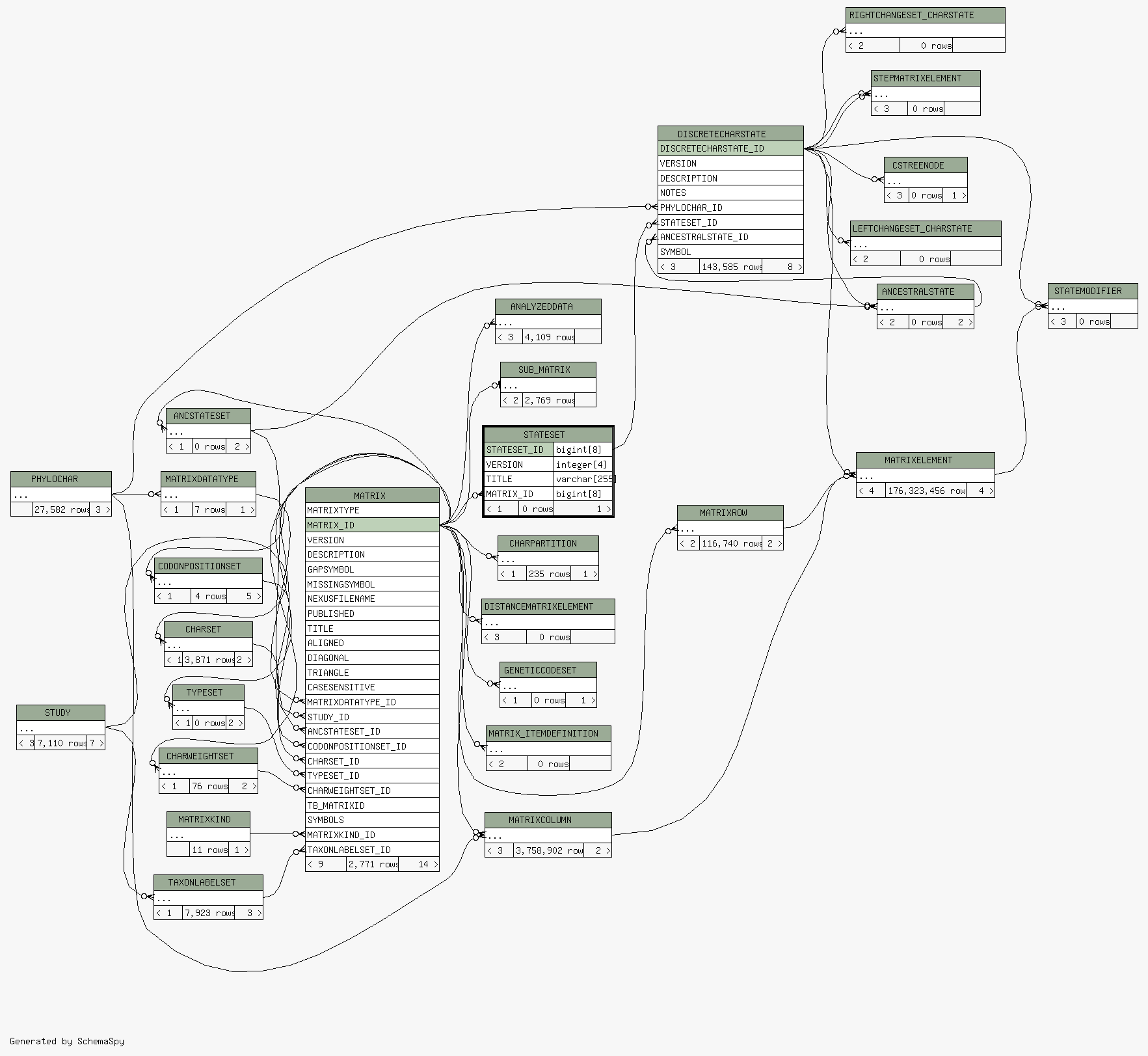

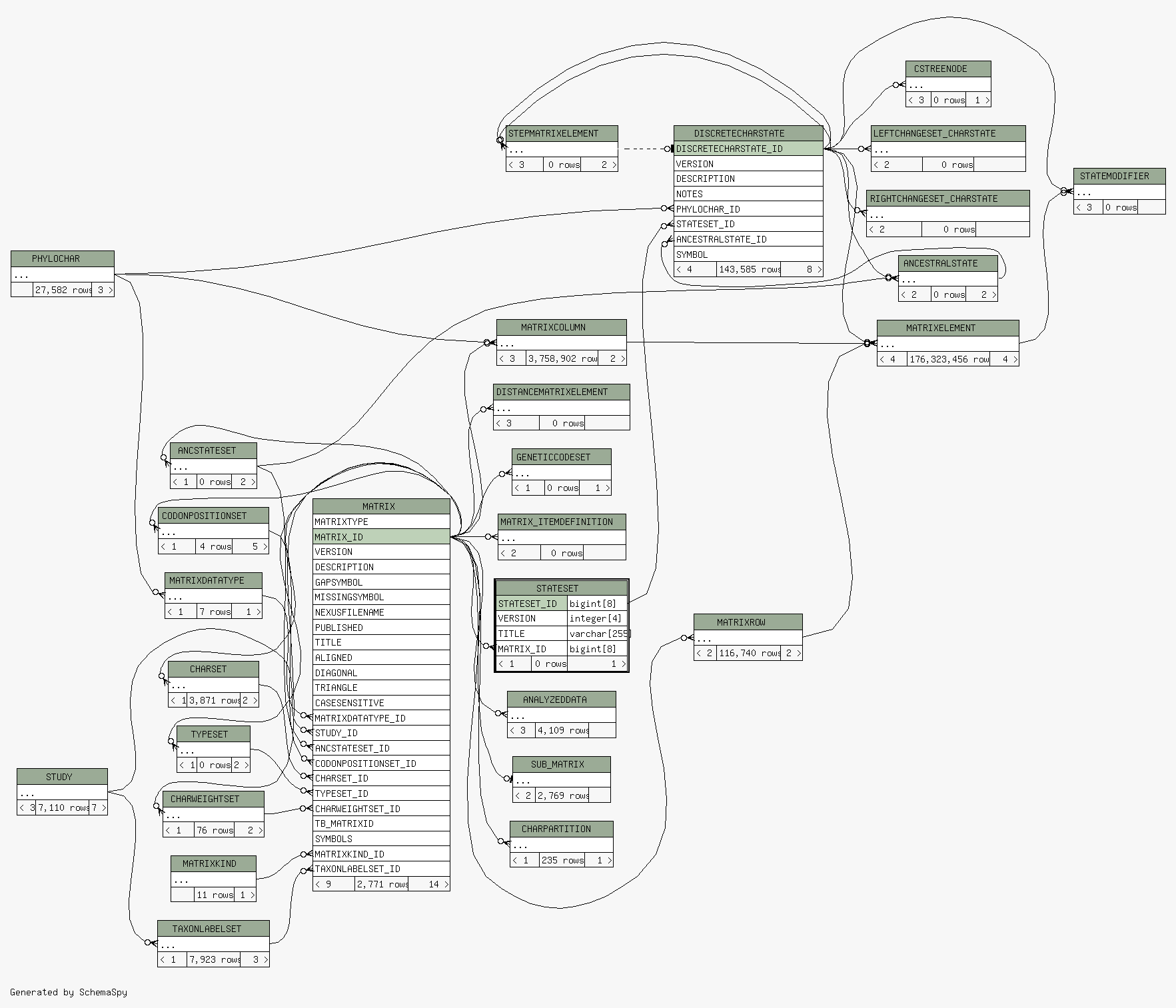

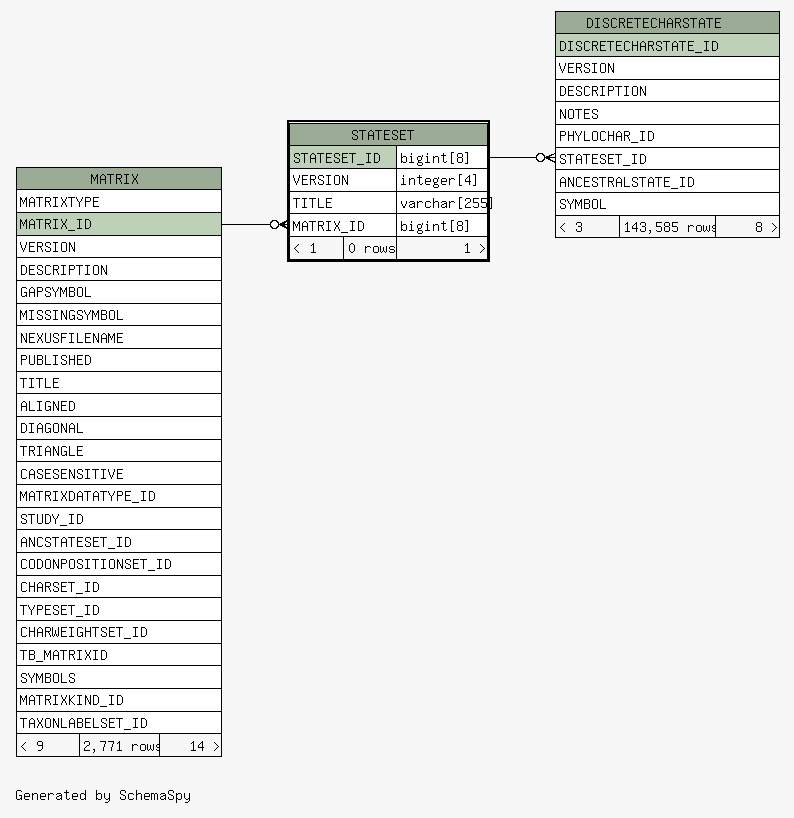

Close relationships  within of separation:
