Table TBASE2.TBASE2.CHARWEIGHTSET Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

ID Column Type Size Nulls Auto Default Children Parents Comments
0 CHARWEIGHTSET_ID bigint 8  √
CHARWEIGHT.CHARWEIGHTSET_ID FK8CC7694EE9B425A6
MATRIX.CHARWEIGHTSET_ID FK87208BC1E9B425A6
1 VERSION integer 4  √  null
2 TITLE varchar 255  √  null
3 MATRIX_ID bigint 8  √  null
MATRIX.MATRIX_ID FK99B8AC34A414944F

Table contained 76 rows at Fri Nov 14 16:57 EST 2008

Indexes:
ID Column(s) Type Sort Constraint Name
1 CHARWEIGHTSET_ID Must be unique Asc SQL080501230722250

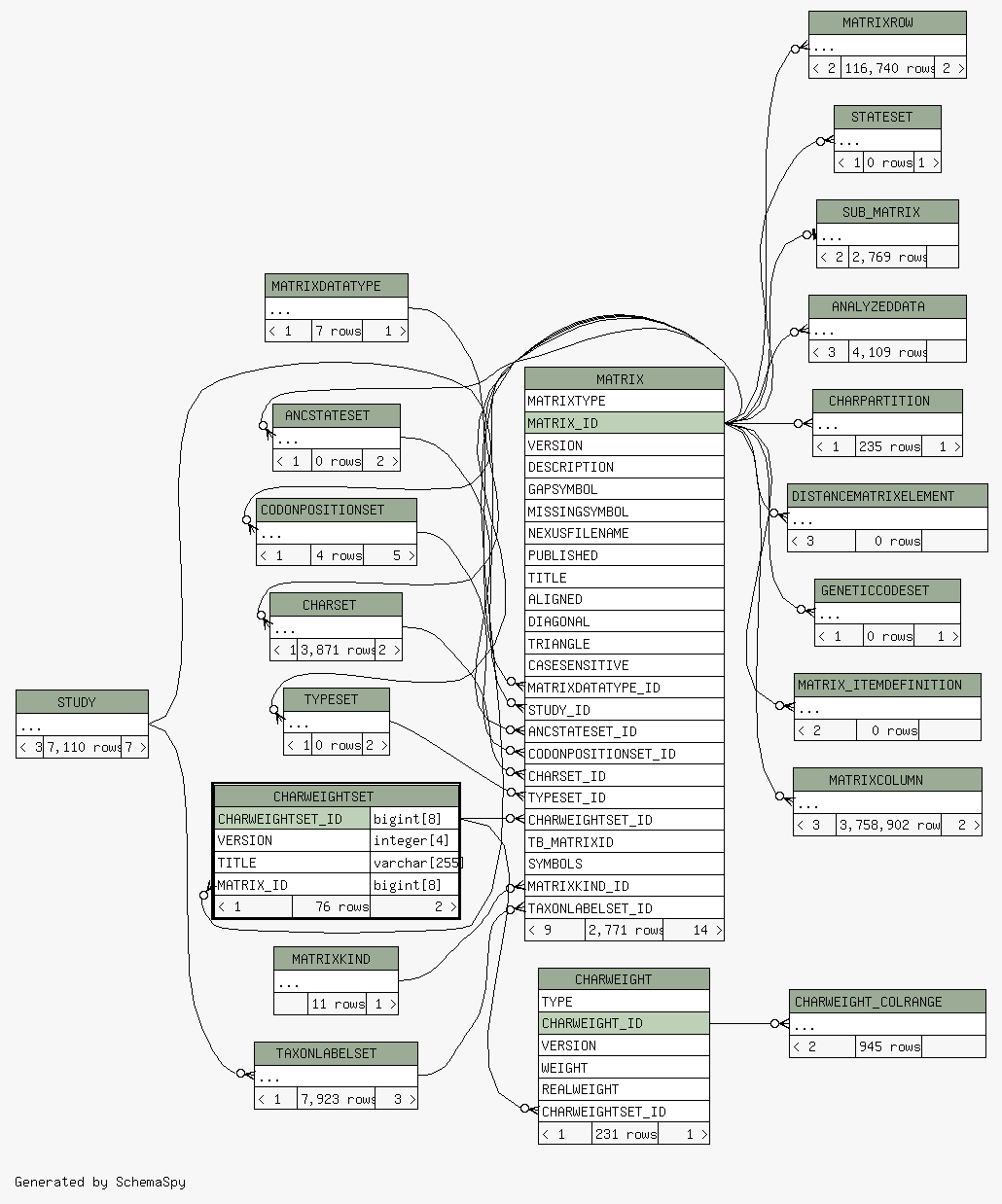

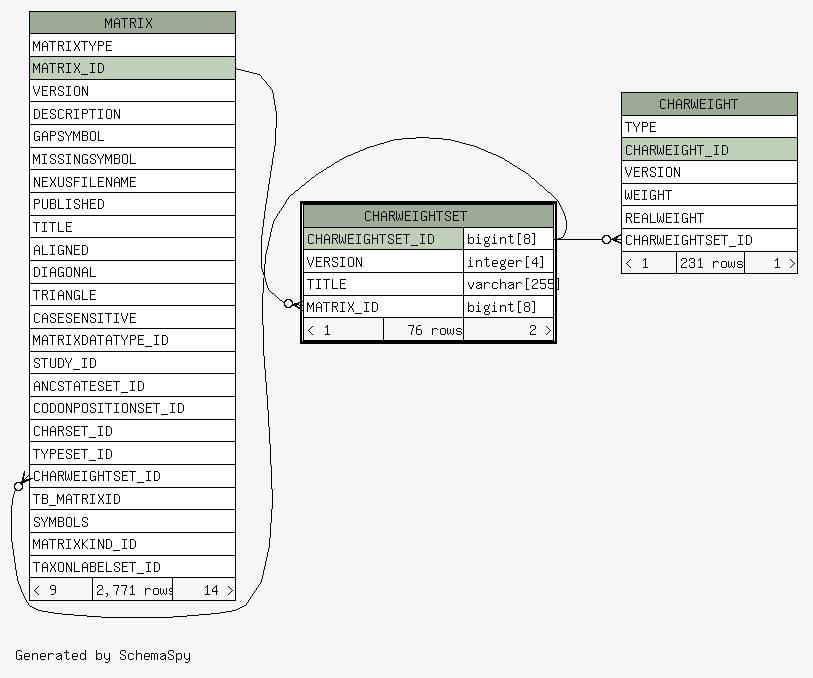

Close relationships  within of separation:
