Table TBASE2.TBASE2.CHARGROUP Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

ID Column Type Size Nulls Auto Default Children Parents Comments
0 CHARGROUP_ID bigint 8  √
CHARGROUP_COLRANGE.CHARGROUP_ID FKB2D8C293971FFFA6
CHARGROUP_PHYLOCHAR.CHARGROUP_ID Implied Constraint
1 VERSION integer 4  √  null
2 TITLE varchar 255  √  null
3 CHARPARTITION_ID bigint 8  √  null
CHARPARTITION.CHARPARTITION_ID FK3AF18C91AA11DC6

Table contained 652 rows at Fri Nov 14 16:57 EST 2008

Indexes:
ID Column(s) Type Sort Constraint Name
1 CHARGROUP_ID Must be unique Asc SQL080501230722150

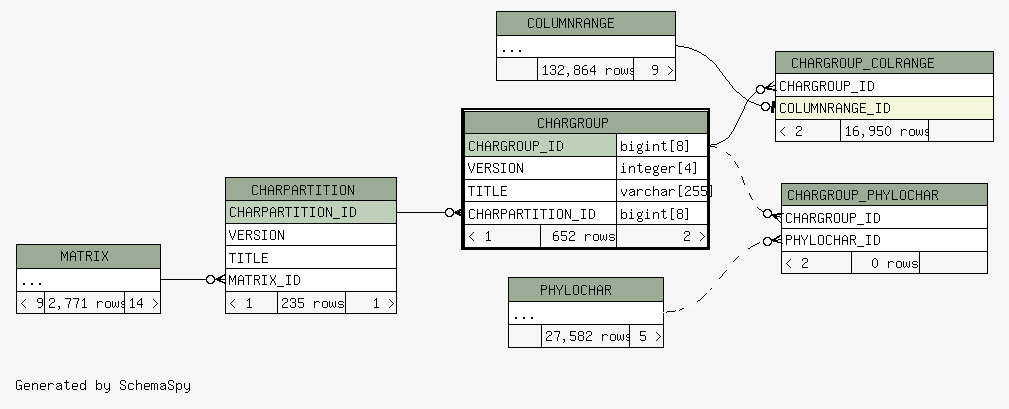

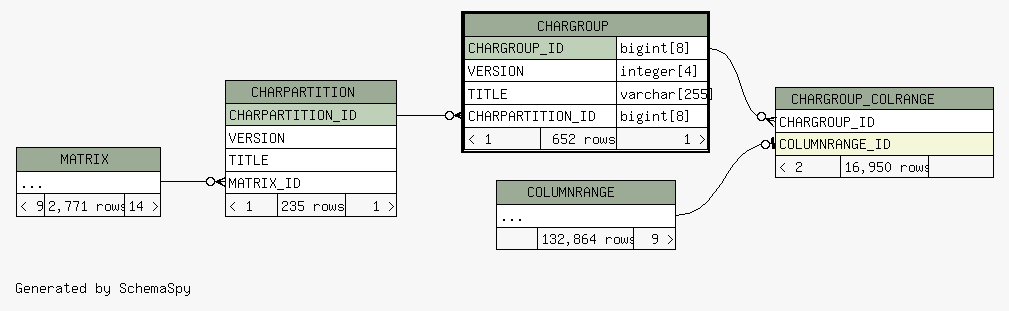

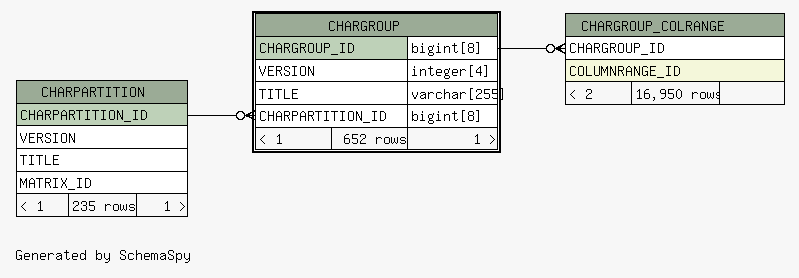

Close relationships  within of separation:
