Table TBASE2.TBASE2.ANALYSISSTEP Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

ID Column Type Size Nulls Auto Default Children Parents Comments
0 ANALYSISSTEP_ID bigint 8  √
ANALYZEDDATA.ANALYSISSTEP_ID FK8C9618424BA97F78
1 VERSION integer 4  √  null
2 COMMANDS varchar 2000  √  null
3 NAME varchar 255  √  null
4 NOTES varchar 2000  √  null
5 ALGORITHM_ID bigint 8  √  null
ALGORITHM.ALGORITHM_ID FK21F853A848A2817C
6 ANALYSIS_ID bigint 8  √  null
ANALYSIS.ANALYSIS_ID FK21F853A8D1884DD8
7 SOFTWARE_ID bigint 8  √  null
SOFTWARE.SOFTWARE_ID FK21F853A865EDD5F8
8 STEP_ORDER integer 4  √  null
9 TB_ANALYSISID varchar 34  √  null

Table contained 1,701 rows at Fri Nov 14 16:57 EST 2008

Indexes:
ID Column(s) Type Sort Constraint Name
1 ANALYSISSTEP_ID Must be unique Asc SQL080501230722040

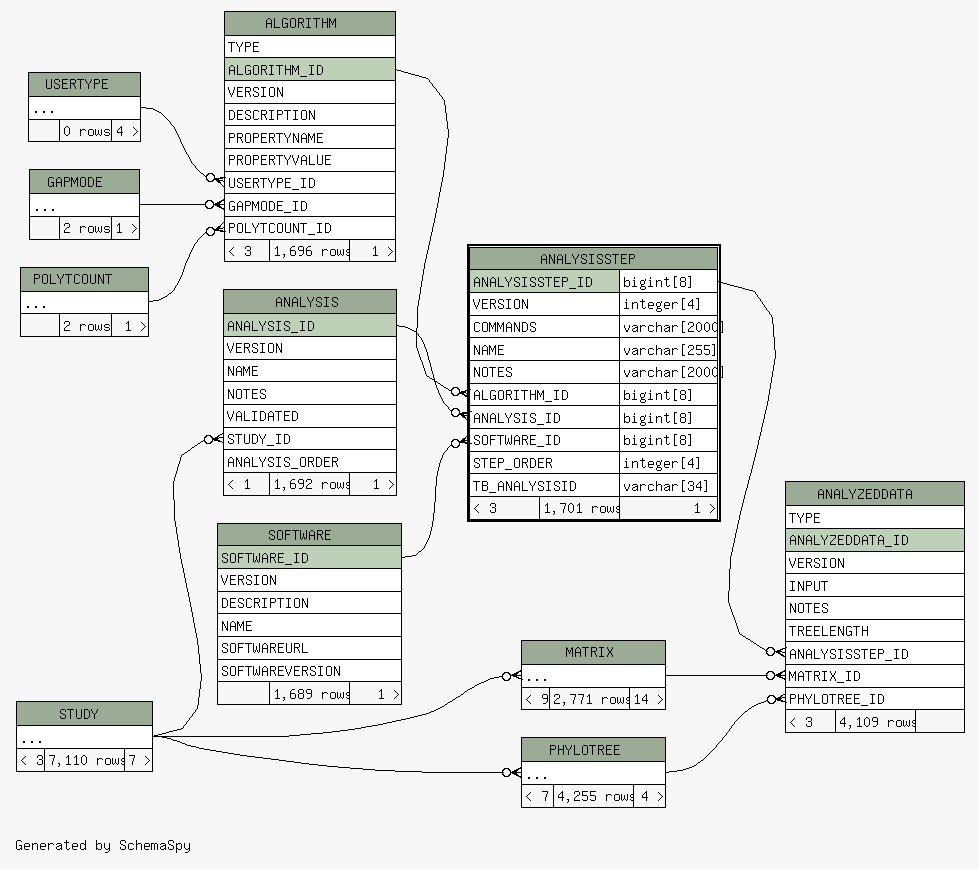

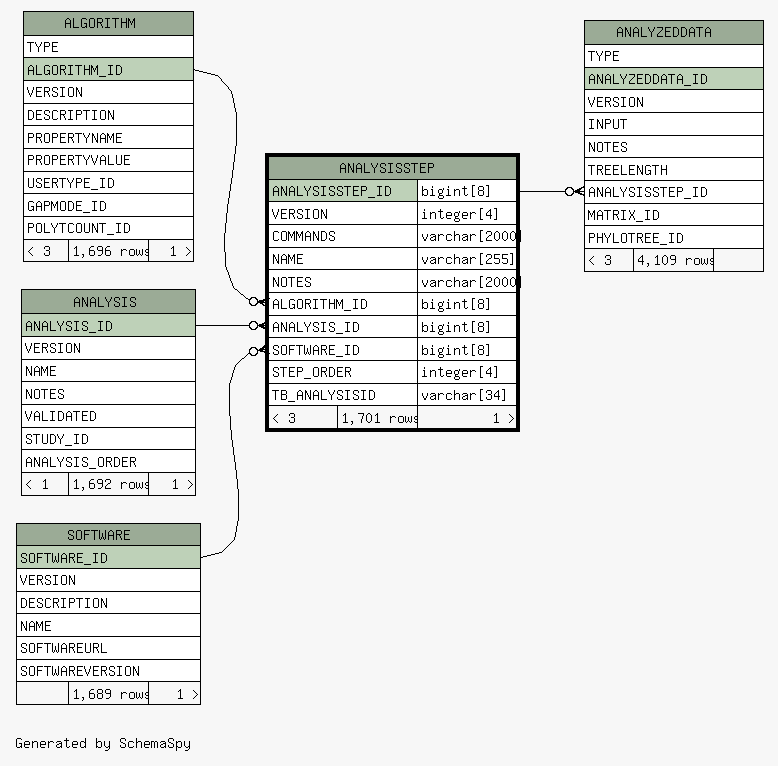

Close relationships  within of separation:
